Description

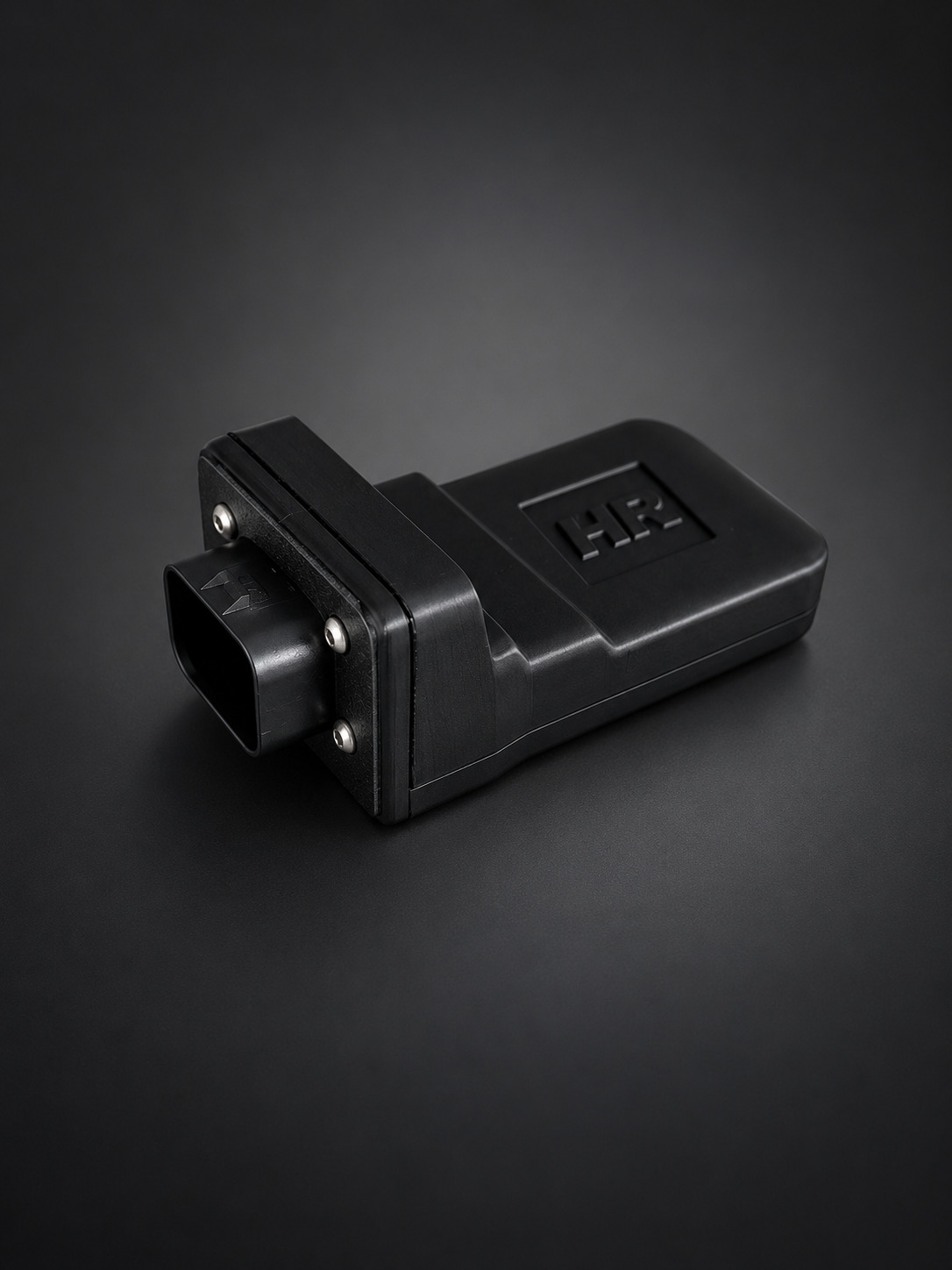

Compact analogue pressure-monitoring module that watches the existing 0–5 V fuel-pressure sensor signal while leaving the original sensor connection intact. If pressure remains below the calibrated trip point for approximately 0.45 seconds, Inject Protect opens the injector-relay control path. Nominal fuel-pressure trip threshold: 1.25 V. 14-way AMPSEAL interface. Optional oil-pressure safeguard is supplied as a separate package. Available to order from 12 November 2026. Inject Protect is an additional safeguard, not a complete or guaranteed fail-safe; correct installation, calibration and vehicle validation are required, and the specific Inject Protect terms must be accepted at checkout.
